- 產品型號：75378263
- 頻率：20.000MHz
- 尺寸：5.0x3.2mm
- 產品介紹：AEL兩腳貼片晶振,ELM3-20.000MHz-E7U-T,藍牙模塊晶振，英國進口晶振，AEL晶振，艾爾晶振，型號：ELM3晶振，編碼為：ELM3-20.000MHz-E7U-T，頻率為：20.000MHz，小...
-
AEL兩腳貼片晶振,ELM3-20.000MHz-E7U-T,藍牙模塊晶振
航欄(16).jpg)
.jpg)
AEL兩腳貼片晶振,ELM3-20.000MHz-E7U-T,藍牙模塊晶振，英國進口晶振，AEL晶振，艾爾晶振，型號：ELM3晶振，編碼為：ELM3-20.000MHz-E7U-T，頻率為：20.000MHz，小體積晶振尺寸：5.0x3.2mm封裝，陶瓷SMD晶體，兩腳貼片晶振，無源晶振，石英晶振，石英晶體諧振器，SMD石英晶體，無鉛環保晶振，工作溫度范圍：0℃至+70℃。具有超小型，輕薄型，高精度，高性能，高品質，高溫度等特點。石英晶振被廣泛應用于：通訊設備，汽車電子，導航儀，無線網絡，藍牙模塊，平板電腦，智能手機，智能家居，物聯網，醫療設備，安防設備等應用。
.jpg)
AEL兩腳貼片晶振,ELM3-20.000MHz-E7U-T,藍牙模塊晶振,參數表
| STANDARD SPECIFICATIONS | |||||||||||||
| PARAMETERS | MAX (Unless otherwise noted) | ||||||||||||
|
Frequency Range Fundamental 3rd Overtone |
8.000 to 54.000 MHz 54.100 to 80.000 MHz |
||||||||||||
| Operation Mode |
Fundamental or 3rd Overtone |
||||||||||||
| Operating Temperature | -10°C to +60°C, see options | ||||||||||||
| Storage Temperature | -40°C to +90°C | ||||||||||||
| Frequency Tolerance @ 25°C | ± 50PPM, see options | ||||||||||||
|
Frequency Stability over the Operating Temperature (ref. to +25°C) |
± 50PPM, see options | ||||||||||||
|
Equivalent Series Resistance (ESR) 8.000 ≤ F < 9.000 (Fund) 9.000 ≤ F < 10.000 (Fund) 10.000 ≤ F < 16.000 (Fund) 16.000 ≤ F < 20.000 (Fund) 20.000 ≤ F < 30.000 (Fund) 30.000 ≤ F ≤ 54.000 (Fund) 54.000 < F ≤ 80.000 (3rd OT) |
140 Ω 120 Ω 60 Ω 40 Ω 30 Ω 25 Ω 60 Ω |
||||||||||||
| Shunt Capacitance (C0) | 7.0 pF | ||||||||||||
| Load Capacitance (CL) | 18 pF, Standard (see options if other than STD) | ||||||||||||
| Drive Level |
10 μW Typ 100 μW |
||||||||||||
| Aging (@25°C±3°C First year ) | ±5ppm | ||||||||||||
| Insulation Resistance@ 100Vdc ± 15V | 500 MOhms | ||||||||||||
| RoHS Compliant |
Yes, , Pb in Glass, exemption 7C-I per RoHS II Directive 2011/65/EU Annex |
||||||||||||
| Pb Free | No | ||||||||||||
| MSL | NA | ||||||||||||
.jpg)

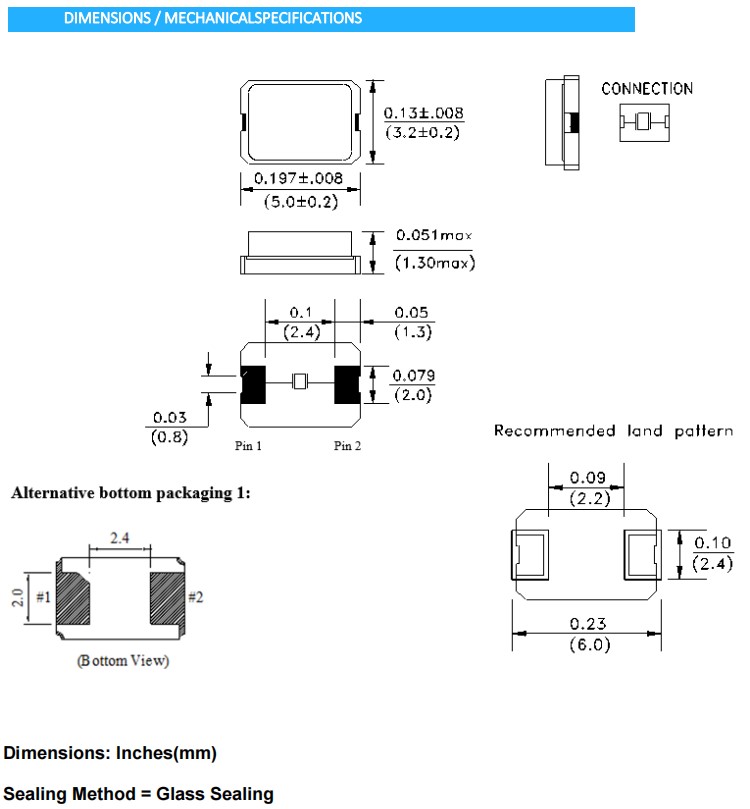

AEL兩腳貼片晶振,ELM3-20.000MHz-E7U-T,藍牙模塊晶振,尺寸圖
AEL兩腳貼片晶振,ELM3-20.000MHz-E7U-T,藍牙模塊晶振
產品特點：
SMD石英晶體諧振器
公差： ±15ppm可用
工作溫度-10°C至+60°C至-40°C至+125°C
格.JPG)
格1.JPG)
| 產品編碼 | 進口晶振 | 頻率 | 長度 | 寬度 | 高度 |
| ELLS-10.000MHz-20-R60-J-Q-F-T | AEL晶振 | 10 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-12.000MHz-18-R60-A-4-F-T | AEL晶振 | 12 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-13.560MHz-10-R35-A4Y-F-T | AEL晶振 | 13.56 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-30.000MHz-10-R50-B1U-F-T | AEL晶振 | 30 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-4.000MHz-16-R120-A4-F-T | AEL晶振 | 4 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-4.000MHz-16-R120-B1X-F-T | AEL晶振 | 4 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-4.000MHz-30-R120-D4-F-T | AEL晶振 | 4 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-8.000MHz-16-R45-D4-F-T | AEL晶振 | 8 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELM10-16.000MHz-8-R60-2-D20-T | AEL晶振 | 16 MHz | 2.5mm | 2mm | 0.5mm |
| ELM10-24.000MHz-16-R100-X-N15-T | AEL晶振 | 24 MHz | 2.5mm | 2mm | 0.5mm |
| ELM11-32.000MHz-10-R60-D1X-T | AEL晶振 | 32 MHz | 2mm | 1.6mm | 0.5mm |
| ELM3-12.000MHz-30-R80-D4Y-T | AEL晶振 | 12 MHz | 5mm | 3.2mm | 1mm |
| ELM3-14.000MHz-30-R80-D4H-T | AEL晶振 | 14 MHz | 5mm | 3.2mm | 1mm |
| ELM3-24.000MHz-18-R40-D4H-T | AEL晶振 | 24 MHz | 5mm | 3.2mm | 1mm |
| ELM3-8.057MHz-18-R100-B4Y-T | AEL晶振 | 8.057 MHz | 5mm | 3.2mm | 1mm |
| ELM8-12.000MHz-10-R50-D4Y-T | AEL晶振 | 12 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-12.5829MHz-16-R60-1U-T | AEL晶振 | 12.5829 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-14.000MHz-16-R150-B1U-T | AEL晶振 | 14.8 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-18.432MHz-16-R80-DQ-T | AEL晶振 | 18.432 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-24.000MHz-10-R60-D1W-T | AEL晶振 | 24 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-24.000MHz-18-R60-B1W-T | AEL晶振 | 24 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-24.000MHz-9-R40-N1U-T | AEL晶振 | 24 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-26.000MHz-18-R60-B1U-T | AEL晶振 | 26 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-32.000MHz-16-R40-B1U-T | AEL晶振 | 32 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-32.000MHz-9-R40-D1G-T | AEL晶振 | 32 MHz | 3mm | 2.5mm | 0.6mm |
| ELS07-32.768kHz-6-T | AEL晶振 | 32.768 kHz | 3.2mm | 1.5mm | 0.75mm |
| ELS07-32.768kHz-T | AEL晶振 | 32.768 kHz | 3.2mm | 1.5mm | 0.75mm |
| ELS13-32.768kHz-7-T | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| ELS13-32.768kHz-7-T | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| ELS13-32.768kHz-9-T | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| ELS13-32.768kHz-T | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| ELS13-32.768kHz-T | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| ELS25-32.768kHz-6-2-T | AEL晶振 | 32.768 kHz | 8mm | 3.8mm | 2.4mm |
| ELS25-32.768kHz-T | AEL晶振 | 32.768 kHz | 8mm | 3.8mm | 2.4mm |
| ELS25-32.768kHz-T | AEL晶振 | 32.768 kHz | 8mm | 3.8mm | 2.4mm |
| ELS06-32.768kHz-9-T | AEL晶振 | 32.768 kHz | 2mm | 1.2mm | 0.6mm |
| ELS05-32.768kHz-9-T | AEL晶振 | 32.768 kHz | 1.6mm | 1mm | 0.5mm |
| ELM12W-24.000MHz-6-R120-D7X-T | AEL晶振 | 24 MHz | 1.6mm | 1.2mm | 0.4mm |
| X10M000000L121 | AEL晶振 | 10 MHz | 11.3mm | 4mm | 16mm |
| X10M000000S065 | AEL晶振 | 10 MHz | 12.3mm | 4.6mm | 4.3mm |
| X12M000000S081 | AEL晶振 | 12 MHz | 12.3mm | 4.6mm | 4.3mm |
| X12M000000S096 | AEL晶振 | 12 MHz | 3mm | 2.5mm | 0.6mm |
| X12M000000S118 | AEL晶振 | 12 MHz | 5mm | 3.2mm | 1mm |
| X12M582900S001 | AEL晶振 | 12.5829 MHz | 3mm | 2.5mm | 0.6mm |
| X13M560000S024 | AEL晶振 | 13.56 MHz | 12.3mm | 4.6mm | 4.3mm |
| X14M000000S003 | AEL晶振 | 14 MHz | 5mm | 3.2mm | 1mm |
| X14M800000S001 | AEL晶振 | 14.8 MHz | 3mm | 2.5mm | 0.6mm |
| X16M000000S182 | AEL晶振 | 16 MHz | 3mm | 2.5mm | 0.6mm |
| X16M000000S207 | AEL晶振 | 16 MHz | 2.5mm | 2mm | 0.5mm |
| X18M432000S049 | AEL晶振 | 18.432 MHz | 3mm | 2.5mm | 0.6mm |
| X21M948717S005 | AEL晶振 | 21.948717 MHz | 5mm | 3.2mm | 1mm |
| X24M000000S029 | AEL晶振 | 24 MHz | 2.5mm | 2mm | 0.5mm |
| X24M000000S049 | AEL晶振 | 24 MHz | 2.5mm | 2mm | 0.5mm |
| X24M000000S050 | AEL晶振 | 24 MHz | 3mm | 2.5mm | 0.6mm |
| X24M000000S079 | AEL晶振 | 24 MHz | 5mm | 3.2mm | 1mm |
| X24M000000S094 | AEL晶振 | 24 MHz | 3mm | 2.5mm | 0.6mm |
| X24M000000S303 | AEL晶振 | 24 MHz | 3mm | 2.5mm | 0.6mm |
| X26M000000S301 | AEL晶振 | 26 MHz | 3mm | 2.5mm | 0.6mm |
| X30M000000S005 | AEL晶振 | 30 MHz | 12.3mm | 4.6mm | 4.3mm |
| X32K768L025 | AEL晶振 | 32.768 kHz | 2.1mm | 6.2mm | 13.2mm |
| X32K768L104 | AEL晶振 | 32.768 kHz | 2.9mm | 8mm | 17mm |
| X32K768S003 | AEL晶振 | 32.768 kHz | 7.9mm | 3.8mm | 2.4mm |
| X32K768S012 | AEL晶振 | 32.768 kHz | 3.2mm | 1.5mm | 0.75mm |
| X32K768S013 | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| X32K768S020 | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| X32K768S021 | AEL晶振 | 32.768 kHz | 4.1mm | 1.5mm | 0.7mm |
| X32K768S036 | AEL晶振 | 32.768 kHz | 10.41mm | 4.06mm | 3.56mm |
| X32K768S038 | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| X32K768S041 | AEL晶振 | 32.768 kHz | 4mm | 1.5mm | 0.7mm |
| X32K768S045 | AEL晶振 | 32.768 kHz | 2mm | 6mm | 9mm |
| X32K768S051 | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| X32K768S067 | AEL晶振 | 32.768 kHz | 3.2mm | 1.5mm | 0.75mm |
| X32K768S073 | AEL晶振 | 32.768 kHz | 6mm | 2.5mm | 8.3mm |
| X32K768S112 | AEL晶振 | 32.768 kHz | 7.9mm | 3.8mm | 2.4mm |
| X32K768S115 | AEL晶振 | 32.768 kHz | 8mm | 4mm | 2.4mm |
| X32K768S134 | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| X32K768S233 | AEL晶振 | 32.768 kHz | 10.4mm | 4mm | 3.5mm |
| X32K768S239 | AEL晶振 | 32.768 kHz | 7.9mm | 3.8mm | 2.4mm |
| X32K768S300 | AEL晶振 | 32.768 kHz | 3.2mm | 1.5mm | 0.75mm |
| X32M000000S039 | AEL晶振 | 32 MHz | 3mm | 2.5mm | 0.6mm |
| X32M000000S045 | AEL晶振 | 32 MHz | 3mm | 2.5mm | 0.6mm |
| X32M000000S046 | AEL晶振 | 32 MHz | 2mm | 1.6mm | 0.5mm |
| X3M686400S004 | AEL晶振 | 3.6864 MHz | 11.8mm | 5.5mm | 2.1mm |
| X4M000000S002 | AEL晶振 | 4 MHz | 12.3mm | 4.6mm | 4.3mm |
| X4M000000S018 | AEL晶振 | 4 MHz | 12.3mm | 4.6mm | 4.3mm |
| X4M000000S084 | AEL晶振 | 4 MHz | 12.3mm | 4.6mm | 4.3mm |
| X8M000000L023 | AEL晶振 | 8 MHz | 10.5mm | 4.7mm | 4mm |
| X8M000000S007 | AEL晶振 | 8 MHz | 12.3mm | 4.6mm | 4.3mm |
| X8M000000S045 | AEL晶振 | 8 MHz | 12mm | 8mm | 4.8mm |
| X8M057000S001 | AEL晶振 | 8.057 MHz | 5mm | 3.2mm | 1mm |
