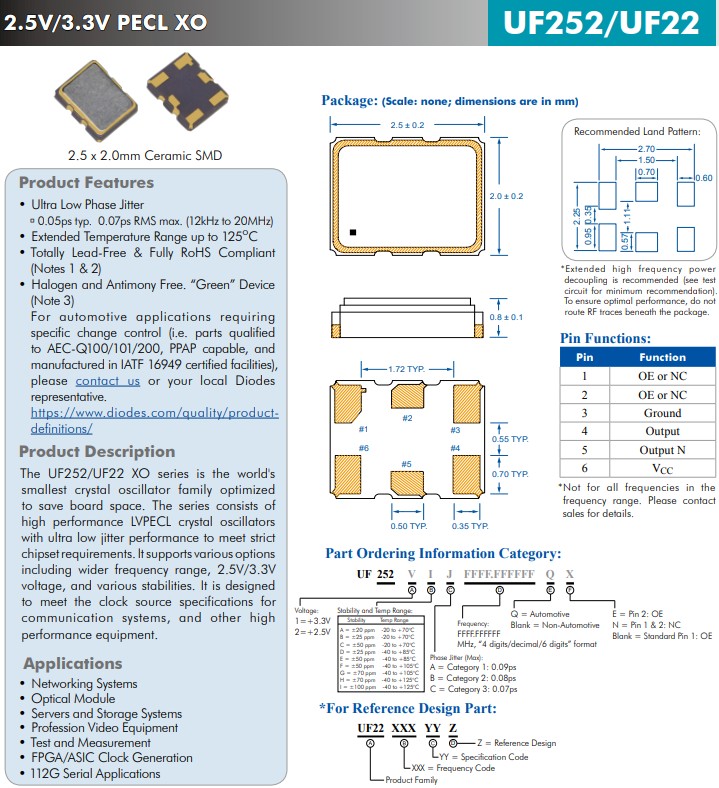

UF252/UF22 XO 系列是世界上最小的晶體振蕩器系列，經過優化以節省電路板空間。該系列由具有超低抖動性能的高性能LVPECL晶體振蕩器組成，可滿足嚴格的芯片組要求。它支持多種選擇，包括更寬的頻率范圍、2.5V/3.3V
電壓和各種穩定性。它旨在滿足通信系統和其他高性能設備的時鐘源規范
UF252/UF22系列具有超低抖動性能的高性能LVPECL晶體振蕩器組成,UF2521DA0100.000000,LVPECL晶體振蕩器,ECERA晶振
.JPG)
UF252/UF22 XO 系列是世界上最小的晶體振蕩器系列，經過優化以節省電路板空間。該系列由具有超低抖動性能的高性能LVPECL晶體振蕩器組成，可滿足嚴格的芯片組要求。它支持多種選擇，包括更寬的頻率范圍、2.5V/3.3V
電壓和各種穩定性。它旨在滿足通信系統和其他高性能設備的時鐘源規范
UF252/UF22系列具有超低抖動性能的高性能LVPECL晶體振蕩器組成,UF2521DA0100.000000,LVPECL晶體振蕩器,ECERA晶振
| FD1940004 | Diodes Incorporated | SaRonix-eCera™ FD | 19.44MHz | ±50ppm |
| FD2000046 | Diodes Incorporated | SaRonix-eCera™ FD | 20MHz | ±50ppm |
| FD2000048 | Diodes Incorporated | SaRonix-eCera™ FD | 20MHz | ±50ppm |
| FD2000049 | Diodes Incorporated | SaRonix-eCera™ FD | 20MHz | ±25ppm |
| FD2400022 | Diodes Incorporated | SaRonix-eCera™ FD | 24MHz | ±50ppm |
| FD2400023 | Diodes Incorporated | SaRonix-eCera™ FD | 24MHz | ±50ppm |
| FD2400024 | Diodes Incorporated | SaRonix-eCera™ FD | 24MHz | ±25ppm |
| FD2450018 | Diodes Incorporated | SaRonix-eCera™ FD | 24.576MHz | ±50ppm |
| FD2450019 | Diodes Incorporated | SaRonix-eCera™ FD | 24.576MHz | ±25ppm |
| FD2500049 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±25ppm |
| FD2500052 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±50ppm |
| FD2500054 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±50ppm |
| FD2500057 | Diodes Incorporated | SaRonix-eCera™ FD | 25.0012MHz | ±25ppm |
| FD2500058 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±50ppm |
| FD2500061 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±25ppm |
| FD2600027 | Diodes Incorporated | SaRonix-eCera™ FD | 26MHz | ±50ppm |
| FD2600028 | Diodes Incorporated | SaRonix-eCera™ FD | 26MHz | ±25ppm |
| FD2600030 | Diodes Incorporated | SaRonix-eCera™ FD | 26MHz | ±50ppm |
| FD2600031 | Diodes Incorporated | SaRonix-eCera™ FD | 26MHz | ±25ppm |
| FD2660003 | Diodes Incorporated | SaRonix-eCera™ FD | 26.66MHz | ±25ppm |
| FD2700033 | Diodes Incorporated | SaRonix-eCera™ FD | 27MHz | ±25ppm |
| FD2700034 | Diodes Incorporated | SaRonix-eCera™ FD | 27MHz | ±50ppm |
| FD2700035 | Diodes Incorporated | SaRonix-eCera™ FD | 27MHz | ±50ppm |
| FD2700038 | Diodes Incorporated | SaRonix-eCera™ FD | 27MHz | ±50ppm |
| FD2700043 | Diodes Incorporated | SaRonix-eCera™ FD | 27MHz | ±50ppm |
UF252/UF22系列具有超低抖動性能的高性能LVPECL晶體振蕩器組成,UF2521DA0100.000000,LVPECL晶體振蕩器,ECERA晶振
特征：
特征：
超低相位抖動石英晶振
0.05ps 典型值。0.07ps RMS 最大值。（12kHz至20MHz）
擴展溫度范圍高達 125℃
完全無鉛且完全符合 RoHS 標準
不含鹵素和銻。“綠色”裝置
應用程序：網絡系統，光模塊，服務器和存儲系統，專業視頻設備，測試與測量，FPGA/ASIC 時鐘生成，112G 串行應用
| FD2860005 | Diodes Incorporated | SaRonix-eCera™ FD | 28.6363MHz | ±50ppm |
| FD2860006 | Diodes Incorporated | SaRonix-eCera™ FD | 28.63636MHz | ±50ppm |
| FD3000014 | Diodes Incorporated | SaRonix-eCera™ FD | 30MHz | ±25ppm |
| FD3000015 | Diodes Incorporated | SaRonix-eCera™ FD | 30MHz | ±50ppm |
| FD3000016 | Diodes Incorporated | SaRonix-eCera™ FD | 30MHz | ±50ppm |
| FD3120001 | Diodes Incorporated | SaRonix-eCera™ FD | 31.25MHz | ±25ppm |
| FD3300021 | Diodes Incorporated | SaRonix-eCera™ FD | 33MHz | ±50ppm |
| FD3300022 | Diodes Incorporated | SaRonix-eCera™ FD | 33MHz | ±25ppm |
| FD3300023 | Diodes Incorporated | SaRonix-eCera™ FD | 33MHz | ±50ppm |
| FD3330016 | Diodes Incorporated | SaRonix-eCera™ FD | 33.333MHz | ±25ppm |
| FD3330017 | Diodes Incorporated | SaRonix-eCera™ FD | 33.333MHz | ±50ppm |
| FD3330018 | Diodes Incorporated | SaRonix-eCera™ FD | 33.3333MHz | ±50ppm |
| FD3330019 | Diodes Incorporated | SaRonix-eCera™ FD | 33.3333MHz | ±25ppm |
| FD3330020 | Diodes Incorporated | SaRonix-eCera™ FD | 33.3333MHz | ±50ppm |
| FD3330022 | Diodes Incorporated | SaRonix-eCera™ FD | 33.333MHz | ±50ppm |
| FD3330024 | Diodes Incorporated | SaRonix-eCera™ FD | 33.333333MHz | ±25ppm |
| FD3330026 | Diodes Incorporated | SaRonix-eCera™ FD | 33.333MHz | ±50ppm |
| FD3430001 | Diodes Incorporated | SaRonix-eCera™ FD | 34.368MHz | ±25ppm |
| FD3530003 | Diodes Incorporated | SaRonix-eCera™ FD | 35.328MHz | ±50ppm |
| FD3530004 | Diodes Incorporated | SaRonix-eCera™ FD | 35.328MHz | ±25ppm |
| FD3530005 | Diodes Incorporated | SaRonix-eCera™ FD | 35.328MHz | ±50ppm |
| FD3600009 | Diodes Incorporated | SaRonix-eCera™ FD | 36MHz | ±25ppm |
| FD3680001 | Diodes Incorporated | SaRonix-eCera™ FD | 36.864MHz | ±50ppm |
| FD3680002 | Diodes Incorporated | SaRonix-eCera™ FD | 36.864MHz | ±25ppm |
| FD3680003 | Diodes Incorporated | SaRonix-eCera™ FD | 36.864MHz | ±50ppm |

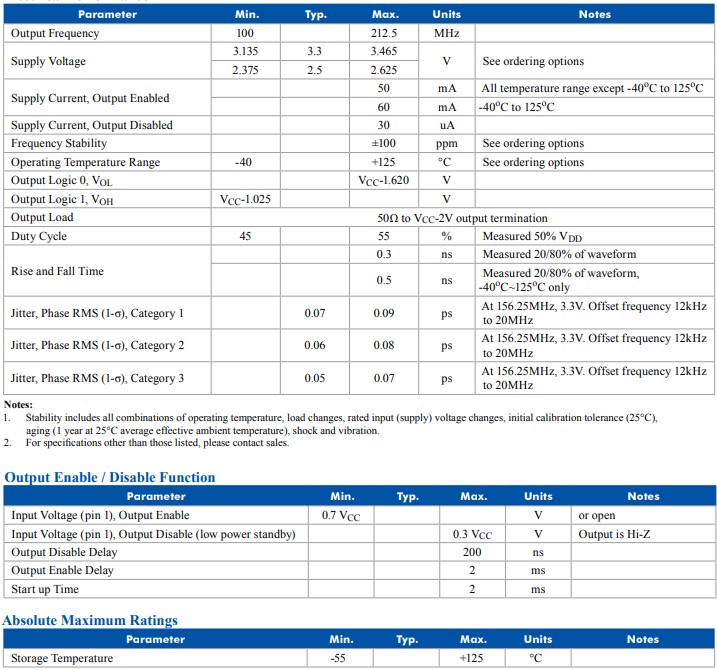

Product Parameters
| Stability (PPM) | 20 to 100 |
|---|---|
| Package Size (mm) | 2.5 x 2.0 x 0.8 |
| PkgType | Ceramic Seam |
| Freq Range (MHz) | 100 to 212.5 |
| Jitter RMS (ps) | 0.08 to 0.09 |
| Output Logic | HCSL |
| Supply Voltage (V) | 3.3, 2.5 |
| Pads | 6 |
| ProductSeries | UF2 |
UF252/UF22系列具有超低抖動性能的高性能LVPECL晶體振蕩器組成,UF2521DA0100.000000,LVPECL晶體振蕩器,ECERA晶振
產品參數：
產品參數：
穩定性 (PPM) 20 到 100
包裝尺寸 2.5x2.0x0.8mm小體積晶振
包裝類型 陶瓷縫
頻率范圍 100MHz至212.5MHz
抖動均方根 0.08ps至0.09ps
輸出邏輯 HCSL
電源電壓 3.3V, 2.5V
墊 6腳
產品系列 UF2
UF252/UF22系列具有超低抖動性能的高性能LVPECL晶體振蕩器組成,UF2521DA0100.000000,LVPECL晶體振蕩器,ECERA晶振
DIODES優勢：
| FD4000119 | Diodes Incorporated | SaRonix-eCera™ FD | 40MHz | ±50ppm |
| FD4000120 | Diodes Incorporated | SaRonix-eCera™ FD | 40MHz | ±25ppm |
| FD4000121 | Diodes Incorporated | SaRonix-eCera™ FD | 40MHz | ±50ppm |
| FD4000123 | Diodes Incorporated | SaRonix-eCera™ FD | 40MHz | ±25ppm |
| FD4100001 | Diodes Incorporated | SaRonix-eCera™ FD | 41MHz | ±50ppm |
| FD4100002 | Diodes Incorporated | SaRonix-eCera™ FD | 41MHz | ±50ppm |
| FD4400070 | Diodes Incorporated | SaRonix-eCera™ FD | 41MHz | ±50ppm |
| FD4470001 | Diodes Incorporated | SaRonix-eCera™ FD | 44.736MHz | ±25ppm |
| FD4800046 | Diodes Incorporated | SaRonix-eCera™ FD | 48MHz | ±50ppm |
| FD4800047 | Diodes Incorporated | SaRonix-eCera™ FD | 48MHz | ±25ppm |
| FD4800048 | Diodes Incorporated | SaRonix-eCera™ FD | 48MHz | ±50ppm |
| FD4800050 | Diodes Incorporated | SaRonix-eCera™ FD | 48MHz | ±50ppm |
| FD4910004 | Diodes Incorporated | SaRonix-eCera™ FD | 49.152MHz | ±25ppm |
| FD5000032 | Diodes Incorporated | SaRonix-eCera™ FD | 50MHz | ±50ppm |
| FD5000033 | Diodes Incorporated | SaRonix-eCera™ FD | 50MHz | ±25ppm |
| FD5000034 | Diodes Incorporated | SaRonix-eCera™ FD | 50MHz | ±50ppm |
| FD5000036 | Diodes Incorporated | SaRonix-eCera™ FD | 50MHz | ±50ppm |
| FD5000037 | Diodes Incorporated | SaRonix-eCera™ FD | 50MHz | ±50ppm |
| FD5000040 | Diodes Incorporated | SaRonix-eCera™ FD | 50MHz | ±50ppm |
| FD5400017 | Diodes Incorporated | SaRonix-eCera™ FD | 54MHz | ±50ppm |
| FD5670001 | Diodes Incorporated | SaRonix-eCera™ FD | 56.75MHz | ±50ppm |
| FD6000016 | Diodes Incorporated | SaRonix-eCera™ FD | 60MHz | ±50ppm |
| FD6250007 | Diodes Incorporated | SaRonix-eCera™ FD | 62.5MHz | ±50ppm |
| FD6250008 | Diodes Incorporated | SaRonix-eCera™ FD | 62.5MHz | ±25ppm |
| FD6250009 | Diodes Incorporated | SaRonix-eCera™ FD | 62.5MHz | ±50ppm |
DIODES優勢：
UF系列為高速提供超低抖動
為高性能應用提供盡可能小的封裝。
UF系列XO 石英振蕩器
超低均方根抖動(典型值低至50fs)
超過苛刻應用的要求，并且
提供廣泛的設計余量
2.5毫米x 2.0mm毫米大小的包裝:
優化電路板空間以支持微型系統設計
寬溫度范圍(-40°C至125°C)
符合汽車行業標準(符合AEC-Q104)的版本
支持在惡劣環境中運行的加固設備設計
.JPG)
應用程序：光學模塊，網絡系統，測試和測量，裝備112G系列應用PCIe 5.0建筑，系統，服務器和存儲系統，專業視頻設備，FPGA/ASIC參考時鐘，發電機
UF252/UF22系列具有超低抖動性能的高性能LVPECL晶體振蕩器組成,UF2521DA0100.000000,LVPECL晶體振蕩器,ECERA晶振
| FD6250011 | Diodes Incorporated | SaRonix-eCera™ FD | 62.5MHz | ±50ppm |
| FD6400006 | Diodes Incorporated | SaRonix-eCera™ FD | 64MHz | ±50ppm |
| FD6400007 | Diodes Incorporated | SaRonix-eCera™ FD | 64MHz | ±25ppm |
| FD6400008 | Diodes Incorporated | SaRonix-eCera™ FD | 64MHz | ±50ppm |
| FD6600015 | Diodes Incorporated | SaRonix-eCera™ FD | 66MHz | ±25ppm |
| FD6600016 | Diodes Incorporated | SaRonix-eCera™ FD | 66MHz | ±50ppm |
| FD6600017 | Diodes Incorporated | SaRonix-eCera™ FD | 66MHz | ±50ppm |
| FD6660016 | Diodes Incorporated | SaRonix-eCera™ FD | 66.666MHz | ±50ppm |
| FD6660017 | Diodes Incorporated | SaRonix-eCera™ FD | 66.666MHz | ±25ppm |
| FD6660018 | Diodes Incorporated | SaRonix-eCera™ FD | 66.666MHz | ±50ppm |
| FD6660019 | Diodes Incorporated | SaRonix-eCera™ FD | 66.6667MHz | ±50ppm |
| FD6660020 | Diodes Incorporated | SaRonix-eCera™ FD | 66.6667MHz | ±25ppm |
| FD6660021 | Diodes Incorporated | SaRonix-eCera™ FD | 66.6667MHz | ±50ppm |
| FD6660024 | Diodes Incorporated | SaRonix-eCera™ FD | 66.667MHz | ±25ppm |
| FD6800001 | Diodes Incorporated | SaRonix-eCera™ FD | 68MHz | ±50ppm |
| FD7420006 | Diodes Incorporated | SaRonix-eCera™ FD | 74.25MHz | ±25ppm |
| FD7500010 | Diodes Incorporated | SaRonix-eCera™ FD | 75MHz | ±50ppm |
| FD7500011 | Diodes Incorporated | SaRonix-eCera™ FD | 75MHz | ±25ppm |
| FD7500013 | Diodes Incorporated | SaRonix-eCera™ FD | 75MHz | ±50ppm |
| FD7770004 | Diodes Incorporated | SaRonix-eCera™ FD | 77.76MHz | ±50ppm |
| FD7770005 | Diodes Incorporated | SaRonix-eCera™ FD | 77.76MHz | ±25ppm |
| FD7770006 | Diodes Incorporated | SaRonix-eCera™ FD | 77.76MHz | ±50ppm |
| FD7770007 | Diodes Incorporated | SaRonix-eCera™ FD | 77.76MHz | ±50ppm |
| FD7770008 | Diodes Incorporated | SaRonix-eCera™ FD | 77.76MHz | ±25ppm |
| FD7770009 | Diodes Incorporated | SaRonix-eCera™ FD | 77.76MHz | ±50ppm |
應用程序：光學模塊，網絡系統，測試和測量，裝備112G系列應用PCIe 5.0建筑，系統，服務器和存儲系統，專業視頻設備，FPGA/ASIC參考時鐘，發電機
UF252/UF22系列具有超低抖動性能的高性能LVPECL晶體振蕩器組成,UF2521DA0100.000000,LVPECL晶體振蕩器,ECERA晶振
