首頁進口晶振 SKYWORKS晶振Si511無人機振蕩器,511JBA150M000AAG,Skyworks石英差分晶振

Si511無人機振蕩器,511JBA150M000AAG,Skyworks石英差分晶振

產品型號：64097489
頻率：150MHZ
尺寸：7.0*5.0mm
產品介紹：Si511無人機振蕩器,511JBA150M000AAG,Skyworks石英差分晶振，尺寸7050mm,頻率150MHZ，輸出邏輯LVDS，電壓1.8V，頻率穩定性50ppm，歐美進口晶振，思佳訊差分晶振，...

Si511無人機振蕩器,511JBA150M000AAG,Skyworks石英差分晶振，尺寸7050mm,頻率150MHZ，輸出邏輯LVDS，電壓1.8V，頻率穩定性50ppm，歐美進口晶振，思佳訊差分晶振，Skyworks差分振蕩器，150MHZ差分晶振，OSC差分晶振，7050mm差分振蕩器，差分晶體振蕩器，六腳差分晶振，時鐘振蕩器，LVDS輸出晶振，150MHZ差分晶振，石英晶體振蕩器，有源差分晶振，貼片差分晶振，網絡設備差分晶振，無人機差分晶振，娛樂設備差分晶振，儀器儀表差分晶振，自動駕駛專用差分晶振，測試測量差分晶振，可穿戴設備差分晶振，以太網差分晶振，高頻差分晶振，高精度差分晶振，低耗能差分晶振，低電壓差分晶振，低抖動差分晶振，低功耗差分晶振，低相位差分晶振，具有高精度高頻低耗能的特點.
有源晶振產品非常適合用于網絡設備，無人機，娛樂設備，儀器儀表，自動駕駛，測試測量，可穿戴設備，以太網等領域。Si511無人機振蕩器,511JBA150M000AAG,Skyworks石英差分晶振.

Si511無人機振蕩器,511JBA150M000AAG,Skyworks石英差分晶振 參數表

Parameter	Symbol	Test Condition	Min	Typ	Max	Unit
Supply Voltage	V DD	3.3 V option	2.97	3.3	3.63	V
		2.5 V option	2.25	2.5	2.75	V
		1.8 V option	1.71	1.8	1.89	V
Supply Current	IDD	CMOS, 100 MHz, single-ended	—	21	26	mA
		LVDS (output enabled)	—	19	23	mA
		LVPECL (output enabled)	—	39	43	mA
		HCSL (output enabled)	—	41	44	mA
		Tristate (output disabled)	—	—	18	mA
OE "1" Setting	VIH	See Note	0.80 x V DD	—	—	V
OE "0" Setting	VIL	See Note	—	—	0.20 x V DD	V
OE Internal Pull-Up/Pull- Down Resistor*	RI		—	45	—	kΩ
Operating Temperature	TA		–40	—	85	oC

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Nominal Frequency

CMOS, Dual CMOS

0.1

—

212.5

MHz

LVDS/LVPECL/HCSL

150

MHz

Total Stability*

Frequency Stability Grade C

–30

—

+30

ppm

Frequency Stability Grade B

–50

—

+50

ppm

Frequency Stability Grade A

–100

—

+100

ppm

Temperature Stability

Frequency Stability Grade C

–20

—

+20

ppm

Frequency Stability Grade B

–25

—

+25

ppm

Frequency Stability Grade A

–50

—

+50

ppm

Startup Time

TSU

Minimum V DD until output
frequency (FO) within specification

—

Disable Time

FO> 10 MHz

—

µs

FO< 10 MHz

—

µs

Enable Time

FO> 10 MHz

—

µs

FO< 10 MHz

—

µs

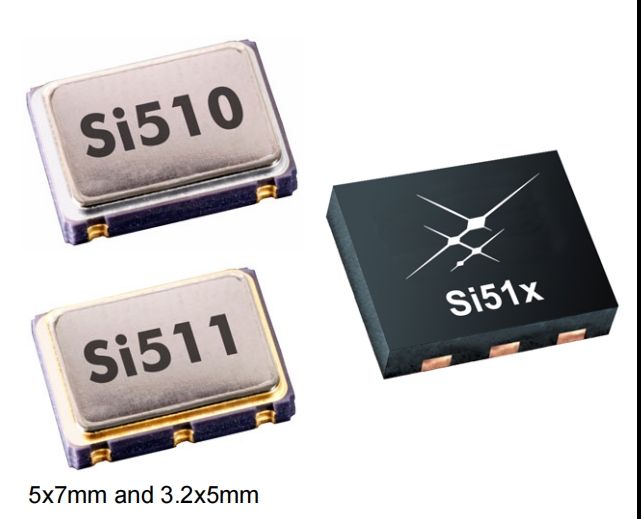

Si511無人機振蕩器,511JBA150M000AAG,Skyworks石英差分晶振 尺寸圖

Si511無人機振蕩器,511JBA150M000AAG,Skyworks石英差分晶振

OSC差分晶振產品特性

支持來自的任何頻率100kHz至250MHz
低抖動操作
2-4周交付周期
總體穩定性包括10年變老
綜合生產試驗覆蓋范圍包括晶體ESR和DLD
用于電源的片上LDO調節器電源噪聲濾波
3.3、2.5或1.8 V操作
差分（LVPECL、LVDS、HCSL）或CMOS輸出選項
可選集成1:2 CMOS扇出緩存
OE和接通電源
行業標準5 x 7、3.2 x 5，和2.5 x 3.2毫米封裝
無鉛，符合RoHS
–40至85℃操作

Mfr Part #	Mfr	Description	Series	Frequency	Output
511FBA100M000BAGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	Si511	100 MHz	LVDS
511ABA106M250BAGR	Skyworks有源晶振	XTAL OSC XO 106.2500MHZ LVPECL	Si511	106.25 MHz	LVPECL
511BBA106M250BAGR	Skyworks有源晶振	XTAL OSC XO 106.2500MHZ LVDS SMD	Si511	106.25 MHz	LVDS
511FBA106M250BAGR	Skyworks有源晶振	XTAL OSC XO 106.2500MHZ LVDS SMD	Si511	106.25 MHz	LVDS
511ABA000149BAGR	Skyworks有源晶振	XTAL OSC XO 74.175824MHZ LVPECL	Si511	74.175824 MHz	LVPECL
511ABA74M2500BAGR	Skyworks有源晶振	XTAL OSC XO 74.2500MHZ LVPECL	Si511	74.25 MHz	LVPECL
511BBA000149BAGR	Skyworks有源晶振	XTAL OSC XO 74.175824MHZ LVDS	Si511	74.175824 MHz	LVDS
511BBA74M2500BAGR	Skyworks有源晶振	XTAL OSC XO 74.2500MHZ LVDS SMD	Si511	74.25 MHz	LVDS
511FBA000149BAGR	Skyworks有源晶振	XTAL OSC XO 74.175824MHZ LVDS	Si511	74.175824 MHz	LVDS
511FBA74M2500BAGR	Skyworks有源晶振	XTAL OSC XO 74.2500MHZ LVDS SMD	Si511	74.25 MHz	LVDS
511BAA75M0000BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	75 MHz	LVDS
511AAA10M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	10 MHz	LVPECL
511JAB125M000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	125 MHz	LVDS
511FAA74M2500CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	74.25 MHz	LVDS
511ABA200M000AAGR	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVPECL	Si511	200 MHz	LVPECL
511FBA200M000AAGR	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	Si511	200 MHz	LVDS
511ABA200M000BAGR	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVPECL	Si511	200 MHz	LVPECL
511FBA200M000BAGR	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	Si511	200 MHz	LVDS
511ABA212M500BAGR	Skyworks有源晶振	XTAL OSC XO 212.5000MHZ LVPECL	Si511	212.5 MHz	LVPECL
511BBA212M500BAGR	Skyworks有源晶振	XTAL OSC XO 212.5000MHZ LVDS SMD	Si511	212.5 MHz	LVDS
511FBA212M500BAGR	Skyworks有源晶振	XTAL OSC XO 212.5000MHZ LVDS SMD	Si511	212.5 MHz	LVDS
511ABA000149BAG	Skyworks有源晶振	XTAL OSC XO 74.175824MHZ LVPECL	Si511	74.175824 MHz	LVPECL
511FBA000149BAG	Skyworks有源晶振	XTAL OSC XO 74.175824MHZ LVDS	Si511	74.175824 MHz	LVDS
511ABA000185AAG	Skyworks有源晶振	XTAL OSC XO 185.0000KHZ LVPECL	Si511	185 kHz	LVPECL
511FBA153M600AAG	Skyworks有源晶振	XTAL OSC XO 153.6000MHZ LVDS SMD	Si511	153.6 MHz	LVDS
511JBA150M000AAG	Skyworks有源晶振	XTAL OSC XO 150.0000MHZ LVDS SMD	Si511	150 MHz	LVDS
511ABA24M0000AAG	Skyworks有源晶振	XTAL OSC XO 24.0000MHZ LVPECL	Si511	24 MHz	LVPECL
511EBB125M000AAG	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ LVPECL	Si511	125 MHz	LVPECL
511FBA000331BAGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	Si511	100 MHz	LVDS
511BBA10M0000BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVDS SMD	Si511	10 MHz	LVDS
511BBA5M00000BAGR	Skyworks有源晶振	XTAL OSC XO 5.0000MHZ LVDS SMD	Si511	5 MHz	LVDS
511BBA62M5000BAGR	Skyworks有源晶振	XTAL OSC XO 62.5000MHZ LVDS SMD	Si511	62.5 MHz	LVDS
511FBA96M0000BAGR	Skyworks有源晶振	XTAL OSC XO 96.0000MHZ LVDS SMD	Si511	96 MHz	LVDS
511JBA25M0000BAGR	Skyworks有源晶振	XTAL OSC XO 25.0000MHZ LVDS SMD	Si511	25 MHz	LVDS
511JBA67M5000BAGR	Skyworks有源晶振	XTAL OSC XO 67.5000MHZ LVDS SMD	Si511	67.5 MHz	LVDS
511JBA74M2500BAGR	Skyworks有源晶振	XTAL OSC XO 74.2500MHZ LVDS SMD	Si511	74.25 MHz	LVDS
511JBA52M0000CAGR	SKYWORKS晶振	XTAL OSC XO 52.0000MHZ LVDS SMD	Si511	52 MHz	LVDS
511BBA104M000BAGR	Skyworks有源晶振	XTAL OSC XO 104.0000MHZ LVDS SMD	Si511	104 MHz	LVDS
511ABA50M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	50 MHz	LVPECL
511JBA116M625BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	116.625 MHz	LVDS
511JBA50M0000BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	50 MHz	LVDS
511FBA111M111CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	111.111 MHz	LVDS
511JBA125M000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	125 MHz	LVDS
511JBA116M625CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	116.625 MHz	LVDS
511FBA83M3333CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	83.3333 MHz	LVDS
511JBA000346CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	33.333333 MHz	LVDS
511BBA100M000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	100 MHz	LVDS
511JBA25M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	25 MHz	LVDS
511BBA125M000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	125 MHz	LVDS
511ABA52M5000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	52.5 MHz	LVPECL
511FBA20M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	20 MHz	LVDS
511JBA10M0000BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	10 MHz	LVDS
511JBA72M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	72 MHz	LVDS
511FBA100M000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	100 MHz	LVDS
511JBB125M000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	125 MHz	LVDS
511BBA50M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	50 MHz	LVDS
511JBB120M000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	120 MHz	LVDS
511JBA80M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	80 MHz	LVDS
511BBA72M0000BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	72 MHz	LVDS
511JBA66M6670BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	66.667 MHz	LVDS
511JBA26M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	26 MHz	LVDS
511BBA5M00000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	5 MHz	LVDS
511BBA80M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	80 MHz	LVDS
511BBA80M0000BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	80 MHz	LVDS
511BBA70M6560BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	70.656 MHz	LVDS
511ABA25M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	25 MHz	LVPECL
