- 產品型號：7065550
- 頻率：32.768KHz
- 尺寸：8.0x3.8x2.5mm
- 產品介紹：ELS25-32.768kHz-6-2-T,8038mm,AEL晶振,數碼電子晶振,ELS25,石英晶體諧振器，英國進口晶振，AEL晶振，艾爾晶振，型號：ELS25系列，編碼為：ELS25-32.768kHz-6-2-T...
-

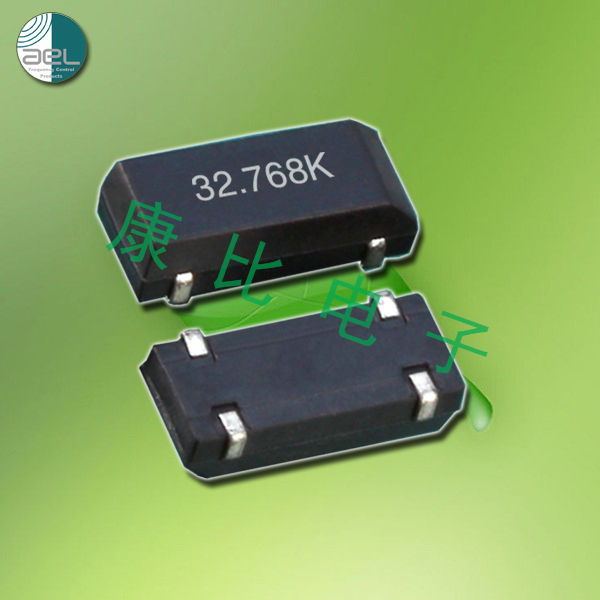

ELS25-32.768kHz-6-2-T,8038mm,AEL晶振,數碼電子晶振
.jpg)
.jpg)
ELS25-32.768kHz-6-2-T,8038mm,AEL晶振,數碼電子晶振,ELS25,石英晶體諧振器，英國進口晶振，AEL晶振，艾爾晶振，型號：ELS25系列，編碼為：ELS25-32.768kHz-6-2-T，頻率：32.768KHz，負載電容：6pF，精度：±20ppm，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：8.0x3.8x2.5mm，四腳貼片晶振，8038晶振，SMD晶振，石英晶振，石英晶體諧振器，無源晶振，陶瓷晶振，具有超小型晶振，輕薄型晶振，高品質晶振，耐熱及耐環境特點，應用于：無線網絡晶振，移動通訊晶振，鐘表晶振，儀器儀表設備晶振，測試設備晶振，智能家居晶振等應用。
ELS25-32.768kHz-6-2-T,8038mm,AEL晶振,數碼電子晶振,ELS25,石英晶體諧振器，產品特點：
•SMD音叉晶體諧振器
•公差：±20ppm，±10ppm可用
•工作溫度-40°C至+85°C
.jpg)
.jpg)
ELS25-32.768kHz-6-2-T,8038mm,AEL晶振,數碼電子晶振,ELS25,石英晶體諧振器,參數表
| PARAMETERS | MAX (Unless otherwise noted) | |||||||||||||||||
| Nominal Frequency | 32.768 kHz | |||||||||||||||||
| Frequency Range | 30 to 100 kHz | |||||||||||||||||
| Operating Temperature | -40°C to +85°C | |||||||||||||||||
| Turnover Temperature | +20°C to +30°C | |||||||||||||||||
| Storage Temperature | -55°C to +125°C | |||||||||||||||||
|
Frequency Tolerance @ 25°C 32.768kHz Other frequencies |
± 20PPM ± 30PPM |
|||||||||||||||||
|
Capacitance Ratio (C0/C1) 32.768kHz Other frequencies |
450 typ 425 to 800 typ |
|||||||||||||||||
| Frequency Coefficient (ß) | -0.035±0.01 ppm/°C2 | |||||||||||||||||
| Equivalent Series Resistance (R1) | 50 k? | |||||||||||||||||
|
Shunt Capacitance (C0) 32.768kHz Other frequencies |
1.35 pF typ 0.8 to 1.7 pF typ |
|||||||||||||||||
| Load Capacitance (CL) | 12.5 pF, see options | |||||||||||||||||
| Drive Level | 1 μW | |||||||||||||||||
|
Aging (@25°C±3°C First year ) 32.768kHz Other frequencies |
±3ppm ±5ppm |
|||||||||||||||||
| Insulation Resistance@ 100Vdc ± 15V | 500 MOhms | |||||||||||||||||
| RoHS Compliant | Yes | |||||||||||||||||
| Pb Free | Exempt 7(a) | |||||||||||||||||
.jpg)
.jpg)
ELS25-32.768kHz-6-2-T,8038mm,AEL晶振,數碼電子晶振,ELS25,石英晶體諧振器,尺寸圖
格.JPG)
| 產品編碼 | 進口晶振 | 頻率 | 長度 | 寬度 | 高度 |
| ELS07-32.768kHz-6-T | AEL晶振 | 32.768 kHz | 3.2mm | 1.5mm | 0.75mm |
| ELS07-32.768kHz-T | AEL晶振 | 32.768 kHz | 3.2mm | 1.5mm | 0.75mm |
| ELS13-32.768kHz-7-T | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| ELS13-32.768kHz-7-T | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| ELS13-32.768kHz-9-T | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| ELS13-32.768kHz-T | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| ELS13-32.768kHz-T | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| ELS25-32.768kHz-6-2-T | AEL晶振 | 32.768 kHz | 8mm | 3.8mm | 2.4mm |
| ELS25-32.768kHz-T | AEL晶振 | 32.768 kHz | 8mm | 3.8mm | 2.4mm |
| ELS25-32.768kHz-T | AEL晶振 | 32.768 kHz | 8mm | 3.8mm | 2.4mm |
| ELS06-32.768kHz-9-T | AEL晶振 | 32.768 kHz | 2mm | 1.2mm | 0.6mm |
| ELS05-32.768kHz-9-T | AEL晶振 | 32.768 kHz | 1.6mm | 1mm | 0.5mm |
| X32K768L025 | AEL晶振 | 32.768 kHz | 2.1mm | 6.2mm | 13.2mm |
| X32K768L104 | AEL晶振 | 32.768 kHz | 2.9mm | 8mm | 17mm |
| X32K768S003 | AEL晶振 | 32.768 kHz | 7.9mm | 3.8mm | 2.4mm |
| X32K768S012 | AEL晶振 | 32.768 kHz | 3.2mm | 1.5mm | 0.75mm |
| X32K768S013 | 石英晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| X32K768S020 | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| X32K768S021 | AEL晶振 | 32.768 kHz | 4.1mm | 1.5mm | 0.7mm |
| X32K768S036 | AEL晶振 | 32.768 kHz | 10.41mm | 4.06mm | 3.56mm |
| X32K768S038 | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| X32K768S041 | AEL晶振 | 32.768 kHz | 4mm | 1.5mm | 0.7mm |
| X32K768S045 | AEL晶振 | 32.768 kHz | 2mm | 6mm | 9mm |
| X32K768S051 | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| X32K768S067 | AEL晶振 | 32.768 kHz | 3.2mm | 1.5mm | 0.75mm |
| X32K768S073 | AEL晶振 | 32.768 kHz | 6mm | 2.5mm | 8.3mm |
| X32K768S112 | AEL晶振 | 32.768 kHz | 7.9mm | 3.8mm | 2.4mm |
| X32K768S115 | AEL晶振 | 32.768 kHz | 8mm | 4mm | 2.4mm |
| X32K768S134 | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| X32K768S233 | AEL晶振 | 32.768 kHz | 10.4mm | 4mm | 3.5mm |
| X32K768S239 | AEL晶振 | 32.768 kHz | 7.9mm | 3.8mm | 2.4mm |
| X32K768S300 | AEL晶振 | 32.768 kHz | 3.2mm | 1.5mm | 0.75mm |
